Clamping Tool - Rikiman

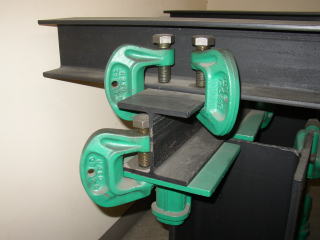

The Rikiman is an industrial strength clamping tool that reduces time and labor costs in building scaffolding for construction sites. It is created by ADI processing strength for use in major building projects. Key advantages of the using the Rikiman to build a scaffolding compared to utilizing conventional bolts and welding are as follows: Assembly takes 3/5 of the time, dismantling time is cut in half, the material is stronger, lighter and reusable, it can be used in water and in fire and the Rikiman is fitted quickly and easily with the use of a toque wrench. This torque wrench is easy to use therefore; any unskilled worker can learn to handle it quickly. Speed in building temporary structures in the wake of a disaster and emergency is key and we believe the use of the Rikiman is an efficient and secure means of doing so. Currently, there is nothing on the market that can replace the Riukiman clamping tool so it is a unique and one of a kind product.

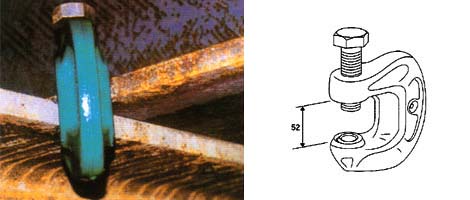

G type Gtype This clamp is designed to seize two piled plates and hold them in place. Also, G type is the most used type in Rikiman series. There are four types of G type: G1, G2, G3 and G4

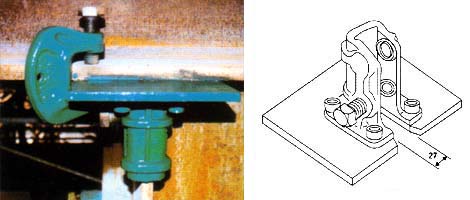

P type P type This is a clamp with a design that allows it to be used as a flat plate against beams. P type seizes the beams and works as a provider for additional support area for handling steel plates. This is how P type is commonly used. Clip width is 27mm.

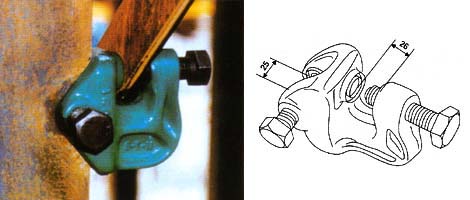

X type X type X type’s dual clamp design allows it to seize beams and other plates which are at different angles, with a single clamp. This type is especially convenient when attaching an angled beam that joins to a straight plate. Grip maximum width is 25mm on one end and 26mm on the second one.
